Kernel I-Node Notifications

At the kernel-space user-space boundary, the following simple C++ wrapper watches for changes to the incoming image directory.

#include <bitset>
#include <cerrno>
#include <map>
#include <system_error>
#include <unordered_map>
#include <vector>

extern "C" {
#include <poll.h>
#include <sys/inotify.h>
#include <unistd.h>
}

namespace sys {
class inotify {
  const int fd_;
  std::unordered_map<int, std::string> wds_;

public:
  inotify() : fd_{inotify_init1(IN_NONBLOCK)} {
    if (fd_ < 0)
      throw std::system_error(errno,
                              std::system_category());
  }

  int add_watch(const std::string &pathname,
                uint32_t mask = IN_ALL_EVENTS) {
    const int wd =
        inotify_add_watch(fd_, pathname.c_str(), mask);
    if (wd < 0)
      throw std::system_error(errno,
                              std::system_category());
    wds_.insert(std::make_pair(wd, pathname));
    return wd;
  }

  virtual ~inotify() { close(fd_); }

  int poll(short events = POLLIN, int timeout = 0) {
    pollfd fds = {fd_, events, 0};
    int rc = ::poll(&fds, 1, timeout);
    if (rc < 0)
      throw std::system_error(errno,
                              std::system_category());
    return rc == 1 ? fds.revents : 0;
  }

  struct event {
    std::string wd;
    uint32_t mask;
    std::string name;
  };

  std::vector<event> read() {
    char buf[BUFSIZ];
    auto len = ::read(fd_, buf, sizeof(buf));
    if (len < 0)
      throw std::system_error(errno,
                              std::system_category());
    std::vector<event> events;
    const inotify_event *event;
    for (auto ptr = buf; ptr < buf + len;
         ptr += sizeof(inotify_event) + event->len) {
      event =
          reinterpret_cast<const inotify_event *>(ptr);
      events.push_back(inotify::event{
          .wd = wds_[event->wd],
          .mask = event->mask,
          .name = std::string(event->name)});
    }
    return events;
  }
};
} // namespace sys

Converting the demo to a service daemon requires that the code runs continuously as a background process. The new daemon program has a simple preamble. It extracts the model file path from the command line, along with the watch directory for input bitmaps and the output path.

  const char* model_path = nullptr;
  const char *output_path = nullptr;

  sys::inotify inotify;
  int ch;
  while ((ch = getopt(argc, argv, "m:i:o:")) >= 0)
    switch (ch) {
    case 'm':
      model_path = optarg;
      break;
    case 'i':
      inotify.add_watch(optarg);
      break;
    case 'o':
      output_path = optarg;
      break;
    default:
      std::cerr << "Usage: " << argv[0]
        << " -m <model>.rknn "
           "-i <input directory> "
           "-o <output directory>" << std::endl;
      exit(EXIT_FAILURE);
    }

Polling for Bitmaps

The following snippet inserts in between the model loading and the image loading. It polls for i-node notifications with a one-second timeout, looking for “close-write” file events on names ending with .bmp.

for (;;) {
  while (inotify.poll(POLLIN, 1000) & POLLIN)
    for (auto event : inotify.read()) {
      if (!ends_with(event.name, ".bmp") ||
        (event.mask & IN_CLOSE_WRITE) == 0) continue;
      std::string wd_name = event.wd + "/" + event.name;
      const char* img_path = wd_name.c_str();
      std::cout << img_path << std::endl;
      using namespace std::chrono;
      const auto start = high_resolution_clock::now();
      {
        // load bitmap, set inputs, run, post process, draw
      }
      if (output_path) img.save((std::string(output_path) +
        "/" + event.name).c_str());
      if (input_data) {
          stbi_image_free(input_data);
      }
    }
}

Close-write events occur when some other program closes a file opened for writing. The snippet elides the per-image recognition stages:

1. loading of the bitmap,
2. setting up the Rockchip neural inputs,
3. running the RISC-V tensor-flow computation,
4. post-processing the tensor flow outputs and
5. drawing the results over the original bitmap.

Building Demos

Rockchip’s demo programs encapsulate the specific requirements for each type of model.

Build the demos using the following Bash script. Notice that the cross-compiler toolchain path calculation presumes that the script resides within the examples folder. Adjust accordingly if not the case.

#!/bin/bash
set -x
export RV1109_TOOL_CHAIN=$(realpath \
  "$(dirname "$0")/../../../../..")/prebuilts/gcc\
  /linux-x86/arm/gcc-arm-8.3-2019.03-x86_64-arm-linux-gnueabihf
for demo in *_demo; do
    pushd $demo
    ./build.sh
    popd
done

adb -H host.docker.internal push install /userdata

Launch the Service

Change the current working directory to the push destination and run the demo as a service.

mkdir /tmp/in /tmp/out
cd /userdata/install/rknn_ssd_demo
./rknn_ssd_demo \
  -m model/ssd_inception_v2_rv1109_rv1126.rknn \
  -i /tmp/in \
  -o /tmp/out &

The command-line arguments specify the input folder and output folder. Note that the demo program needs to launch from its installed directory otherwise it will terminate with a segmentation fault. The demo looks for coco_labels_list.txt under the model folder relative to the current working directory. This limitation could be corrected for production by providing the path to the label list as a command-line option.

The new service begins by initialising the Rockchip hardware and loading the SSD model, as follows.

Loading model ...
librknn_runtime version 1.7.3

Future Directions

Currently, the program only outputs symbolic information derived from each frame as text to standard output. Snippet below. The data identifies the recognised object, its location within the input frame and the match likelihood as a probability.

person @ (14 123 59 211) 0.976142
bicycle @ (170 165 279 234) 0.972723
person @ (110 121 151 197) 0.968828
car @ (146 133 216 170) 0.953655
person @ (208 117 255 220) 0.953655
car @ (1 138 13 154) 0.819371
person @ (84 132 94 158) 0.665369
person @ (49 133 58 157) 0.601661
car @ (133 127 160 166) 0.568302
car @ (129 123 169 150) 0.465688

This information could also be transmitted over the MAVLink mesh. If the system knows the location and orientation of the source camera at the time that the frame was encoded, it may be possible to compute a search area when looking for specific object types.

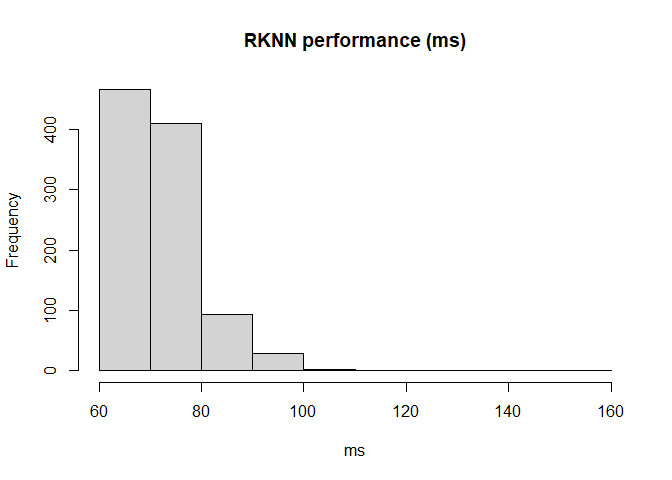

The $14$-frames per second rate could be increased slightly if required. The frame stages include pre- and post-processing executed by the quad-core ARM in a single thread. One core at a time handles the steps surrounding tensor flow analysis, not necessarily the same core. If re-architected to support multi-threading, the recogniser service could optimise the surrounding compute-bound requirements over multiple threads, thereby allowing participation by all four ARM cores.

Multi-Model

In its current form, the recognition service utilises just one model. These need not be the case, however. The service could expand to include different models that could apply to all incoming images or selectively to different images on-demand. The service could implement a non-deterministic priority queue working to sequence RKNN run and load_model events according to the set of incoming images and the requested model applications tasked for those images. Optimisation methods such as A* could predetermine the path of least resistance by plotting a network of events with the least cost.
