Introduction

Is it possible to run TriCore TC3xx tests without a development board using only an emulator in semi-hosting configuration, where the tests can write to the emulator’s standard output for printing test results; also, where tests can interact with the host’s file system by reading text fixtures or writing test result tabulations?

The short answer is no. Not yet. Not with the current version of QEMU, not completely. You can run TriCore code with QEMU, but it cannot straightforwardly exit the firmware or output results, which makes testing difficult—but not impossible. Tests need to signal success or failure at a minimum, and ideally output some results for comparison with test expectations.

This article explores the current state of TriCore emulation with QEMU and quasi-hosting; I’m calling it “quasi” for an exit code with basic output—not quite full semihosting but close enough to be useful as a testing platform. Exiting with a code allows for test assertions; an exit code of \(0\) indicates success, non-\(0\) indicates failure. You can see the resulting exemplar project on GitHub. The example only works with a patched QEMU toolchain also available from GitHub.

Patching the Emulator

The solution is relatively simple. It involves patching the emulator. This is the basic idea: repurpose the “test device,” giving it the ability to write to the emulator’s standard output.

System Start-Up

When you build a project in AURIX Development Studio, you receive libraries and configuration sources along with linker scripts for the alternative toolchains (TASKING and GNU). These are part of the Infineon Low-Level Driver (iLLD) library. The iLLD provides drivers and low-level access to the microcontroller’s peripherals and features. It is essential for developing applications that interact with the hardware at a low level. The start-up software configures the basic multi-core environment, and away we fly.

System start-up on TriCore has special requirements.

/*!
 * \brief Initialise the Context Save Area (CSA) linked list.
 * \details This function initialises the CSA linked list for the CPU on which
 * it is called. It links all CSAs in a linked list fashion and sets the FCX and
 * LCX registers accordingly.
 * \param csa_begin Pointer to the start of the CSA area.
 * \param csa_end Pointer to the end of the CSA area.
 * \note Each CSA consists of 16 words (64 bytes). The number of CSAs is
 * calculated based on the provided begin and end pointers.
 * \note The function ensures that all memory operations are completed before
 * returning by executing a DSYNC instruction.
 * \note This function \e must be an inline function to avoid stack usage before
 * the CSA is initialised.
 * \note Manifest constant \c IFX_SSW_INLINE is not just static and inline. It
 * declares an always_inline function. This is important to avoid function call
 * overhead and stack usage before CSA initialisation.
 */
IFX_SSW_INLINE void Ssw_initCSA(unsigned int *csa_begin, unsigned int *csa_end) {
  /*
   * Calculate the number of CSAs and the LCX index. Each CSA consists of
   * IFX_SSW_CSA_SIZE words (16 words to be exact). The number of CSAs can be
   * calculated as:
   *
   *    (((unsigned int)csa_end - (unsigned int)csa_begin) / (IFX_SSW_CSA_SIZE << 2U))
   */
  const unsigned int num_of_csa = (csa_end - csa_begin) / IFX_SSW_CSA_SIZE;
  const unsigned int lcx_idx = num_of_csa - 3U;
  unsigned int *prv_csa = csa_begin;
  unsigned int *nxt_csa = csa_begin;

  /*
   * Iterate over all CSAs and link them in a linked list.
   */
  for (unsigned int csa_idx = 0U; csa_idx < num_of_csa; csa_idx++) {
    unsigned int cxi_adr = (unsigned int)nxt_csa;
    unsigned int cxi_val =
        ((cxi_adr & ((unsigned int)0xfU << 28U)) >> 12U) |
        ((cxi_adr & ((unsigned int)0xffffU << 6U)) >> 6U);

    /*
     * Link the previous CSA to the current one. For the first CSA, set FCX
     * register.
     */
    if (csa_idx == 0U) {
      Ifx_Ssw_MTCR(CPU_FCX, cxi_val);
    } else {
      *prv_csa = cxi_val;
    }

    /*
     * For the last CSA, link it to LCX register.
     */
    if (csa_idx == lcx_idx) {
      Ifx_Ssw_MTCR(CPU_LCX, cxi_val);
    }

    /*
     * Move to the next CSA.
     */
    prv_csa = nxt_csa;
    nxt_csa += IFX_SSW_CSA_SIZE;
  }

  /*
   * Terminate the linked list. Apply a data memory barrier to ensure all memory
   * operations are completed.
   */
  *prv_csa = 0U;
  Ifx_Ssw_DSYNC();
}

#pragma GCC optimize "O2"

Non-Standard Library

With a pseudo-test device controlling the emulator’s exit and access to the emulator’s standard output, the standard library needs adjusting. The normal toolchain comes with Red Hat’s Newlib [4] C library.

#include <stdlib.h>

#include "rwonce.h"
#include "tricore_testdevice.h"

void exit(int status) {
  WRITE_ONCE(*TRICORE_TESTDEVICE, status);
  while (1) {
    ;
  }
}

void abort(void) { exit(8); }

Adding Quasihosting Tests

Writing a little CMake [6] function can help with this.

# CMake function to add TriCore quasihosting tests.
# Parameters:
# TEST_NAME - Name of the test executable.
# TEST_SOURCES - List of source files for the test.
# APP_SOURCES - List of application source files to include in the test.
# SYSTEM_SOURCES - List of system source files, e.g. startup code.
# LINK_LIBRARIES - List of libraries to link against.
# LINK_OPTIONS - List of link options to apply.
# TIMEOUT - Optional timeout for the test.
# Usage:
# add_tricore_quasihosting_test(TEST_NAME my_test
#     TEST_SOURCES
#         test1.c
#         test2.c
#     APP_SOURCES
#         app1.c
#         app2.c
#     SYSTEM_SOURCES
#         system1.c
#         system2.c
#     LINK_LIBRARIES
#         library1
#         library2
# )
function(add_tricore_quasihosting_test)
    set(options)
    set(oneValueArgs TEST_NAME TIMEOUT)
    set(multiValueArgs TEST_SOURCES APP_SOURCES SYSTEM_SOURCES LINK_LIBRARIES LINK_OPTIONS)
    cmake_parse_arguments(ATQT "${options}" "${oneValueArgs}" "${multiValueArgs}" ${ARGN})

    add_executable(${ATQT_TEST_NAME})
    target_sources(${ATQT_TEST_NAME} PRIVATE
        ${TriCoreQuasihostingTestSources}
        ${ATQT_TEST_SOURCES}
        ${TriCoreQuasihostingAppSources}
        ${ATQT_APP_SOURCES}
        ${TriCoreQuasihostingSystemSources}
        ${ATQT_SYSTEM_SOURCES}
    )
    target_include_directories(${ATQT_TEST_NAME} PRIVATE ${TriCoreQuasihostingIncludeDirectories})
    target_compile_definitions(${ATQT_TEST_NAME} PRIVATE ${TriCoreQuasihostingCompileDefinitions})

    # Link against any additional libraries, e.g. TriCore math.
    target_link_libraries(${ATQT_TEST_NAME} PRIVATE
        ${TriCoreQuasihostingLinkLibraries}
        ${ATQT_LINK_LIBRARIES}
    )

    # Link with quasihosting specifications. The test device provides quasihosting
    # support for TriCore targets.
    target_link_options(${ATQT_TEST_NAME} PRIVATE
        ${TriCoreQuasihostingLinkOptions}
        ${ATQT_LINK_OPTIONS}
        -Wl,-Map,$<TARGET_FILE_BASE_NAME:${ATQT_TEST_NAME}>.map
    )

    # Set timeout for the test if specified.
    if(ATQT_TIMEOUT)
        set_target_properties(${ATQT_TEST_NAME} PROPERTIES TIMEOUT ${ATQT_TIMEOUT})
    endif()

    add_test(NAME ${ATQT_TEST_NAME} COMMAND
        ${CMAKE_CROSSCOMPILING_EMULATOR} $<TARGET_FILE:${ATQT_TEST_NAME}>)
endfunction()

Adding a CTest [7] then becomes simple.

add_tricore_quasihosting_test(TEST_NAME assert_true
    TEST_SOURCES
        ${CMAKE_SOURCE_DIR}/Tests/assert_true.c
)

Debugging with VS Code

Debugging tests with VS Code would be useful. The following tasks.json file launches QEMU with the necessary options to support GDB debugging.

{
    "version": "2.0.0",
    "tasks": [
        {
            "label": "Launch QEMU",
            "type": "shell",
            "command": "qemu-system-tricore",
            "args": [
                // Use the TriCore TC277 machine model. It supports a pseudo-test device
                // at address 0xf0000000 for simple quasi-hosting operations.
                "-M", "KIT_AURIX_TC277_TRB",

                // Use the console for serial I/O. QEMU's default is to create a
                // separate window for serial I/O. The QEMU monitor will appear
                // in the launch terminal.
                "-nographic",

                // Create some extra reset output for the problem matcher to catch.
                // This helps to determine when QEMU has started successfully.
                // Add in_asm to get more detailed output.
                "-d", "cpu_reset,guest_errors",

                "-kernel", "${command:cmake.launchTargetPath}",
                "-s",
                "-S"
            ],
            "dependsOn": [
                "CMake: build",
            ],
            "isBackground": true,
            "problemMatcher": {
                "owner": "qemu",
                "pattern": [
                    {
                        "regexp": "^(.*)$",
                        "file": 1,
                        "location": 2,
                        "message": 3
                    }
                ],
                "background": {
                    "activeOnStart": true,
                    "beginsPattern": "qemu-system-tricore",
                    "endsPattern": "CPU Reset"
                }
            },
            "group": "test",
            "detail": "Launch QEMU emulator",
            "presentation": {
                "reveal": "always",
                "panel": "dedicated"
            }
        },
        {
            "label": "Terminate QEMU",
            "command": "${input:terminate}",
            "type": "shell",
            "problemMatcher": []
        }
    ],
    "inputs": [
        {
            "id": "terminate",
            "type": "command",
            "command": "workbench.action.tasks.terminate",
            "args": "terminateAll"
        }
    ]
}

Requires QEMU to be installed and available in PATH. You may need to adjust the command to point to qemu-system-tricore or qemu-system-tricore.exe after installation.

Note that the GDB server options are required to match those specified in launch.json for the debugger to connect. Option -s is shorthand for -gdb tcp::1234 which starts a GDB server listening on localhost port \(1234\). Option -S makes QEMU start in paused mode, waiting for a GDB connection.

The launch configuration in launch.json only needs to specify the GDB connection details and the pre- and post-launch tasks.

            "preLaunchTask": "Launch QEMU",
            "postDebugTask": "Terminate QEMU",

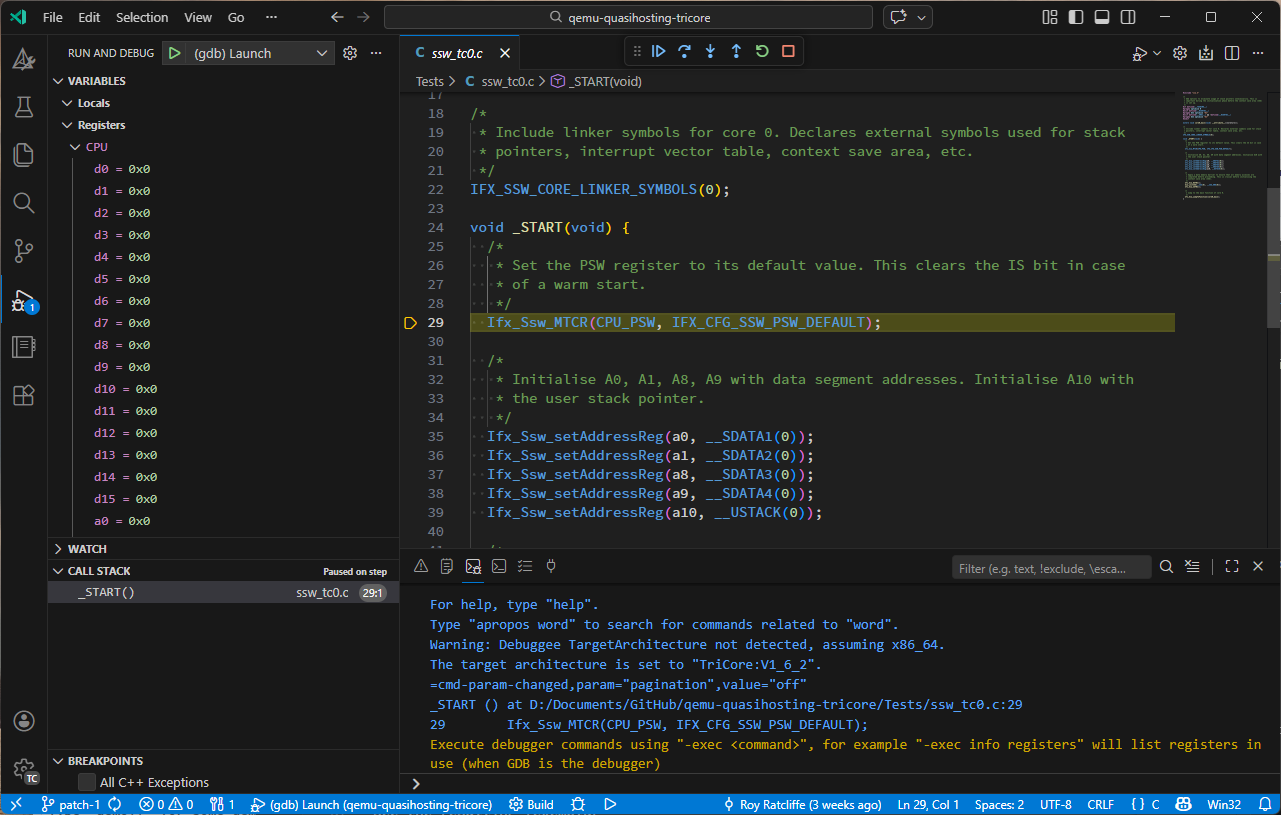

Then just press F5 to start debugging. See below for a screenshot of the setup in action.

Press “;” then “A” to run all tests. See below for a screenshot of the test results in the terminal window.

Conclusions

Why bother? This approach allows for emulated test programs that can apply exhaustive testing to a firmware’s application code.

This approach is not a substitute for testing on real hardware. Some aspects of embedded systems cannot be fully emulated. However, it provides a valuable tool for early-stage testing and development. It does have some limitations, but it also adds some useful capabilities. Application-level testing can be automated without needing physical hardware. Such tests can run quickly and repeatedly, catching regressions early in the development cycle. Tests can also apply exhaustive testing, which may be impractical on real hardware. Safety-critical systems benefit from such thorough testing.

Typically, an embedded firmware’s application code is tightly coupled to the hardware. This makes it difficult to test the application code in isolation. By using an emulator with quasi-hosting capabilities, the application code can be tested without needing the actual hardware. The hardware and low-level drivers can be mocked or stubbed out, allowing the application code to be tested in a controlled and repeatable environment.
